Products > PROXIMITY SENSOR > sensor connector > RK12-S

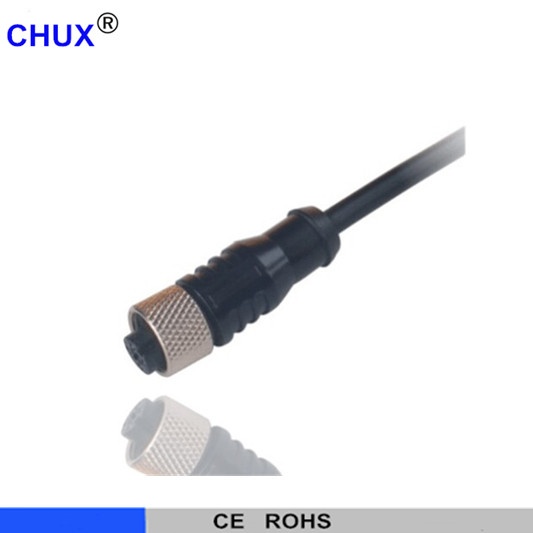

Product name : RK12-S

Item : 2015316154154

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

Sensor Connector with Straight or 90 Degree Connector DC AC black or orange color RK12-S

Description	Details
1. Connector Size	RK12-S
2. Current Rating	7A
3. Number of Contacts	3,4
4. Connector Type	Without SR
5. Connector Gender	Male,Female
6. Contact Gender	Male,Female
7. Assembly Style	Field Installation
8. Mating Style	Screw
9. Backs hell	Straight
10. Waterproof Rating	IP68
Material: Core Material: PA6+30%GF UL94V0 Pin and Hole: Brass, Nickle Plated or Gold plated Sealing: Silicone Cable: Customize Other type cable for customize
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45°C~+105°C Protection Ration: IP68 10m Water 2 weeks Durability: 3K plug/Unplug Cycles
