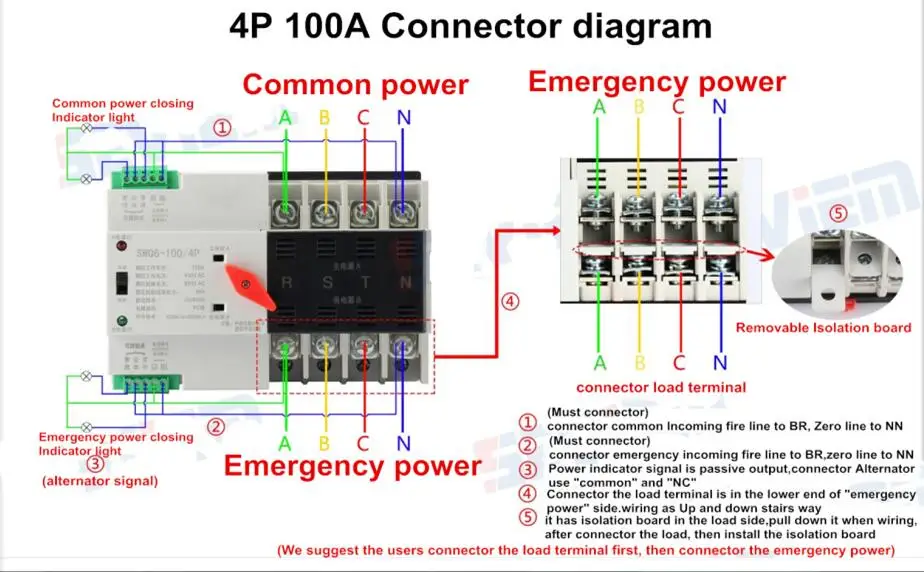

CXS4P-100 Mini ATS 4P Automatic Transfer Switch Electrical Selector Switches Dual Power Switch Din Rail Type
ITEM NO. |
CXS |
Rated current Ie(A) |
16A, 20A, 25A, 32A, 40A, 50A, 63A,100A |
Installation |
Din rail |
Rated insulation voltage Ui (V) |
AC690, 50HZ |
Rated working voltage Ue (V) |
AC400, 50HZ |
Rated impulse withstand voltage (KV ) |
8KV |
Poles |
2P 3P 4P |
Weight (KG) |
0.7 0.85 1 |
Connecting and breaking |
6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times |
Operating performance |
2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times |
Rated limited short-circuit current Iq |
50KA |
SCPD (FUSES ) |
RT16-00-63A |
Control circuit |
Rated supply voltage Us: AC220V, 50HZ.
Working condition:85% Us~110% Us
|
Ancillary circuit |
Two isolated relays, each relay with 2 groups of passive
switch contact. Contact capacity: AC220 50Hz, Ie=5A
|
Switching time |
<50ms |
Action time |
<50ms |
|
