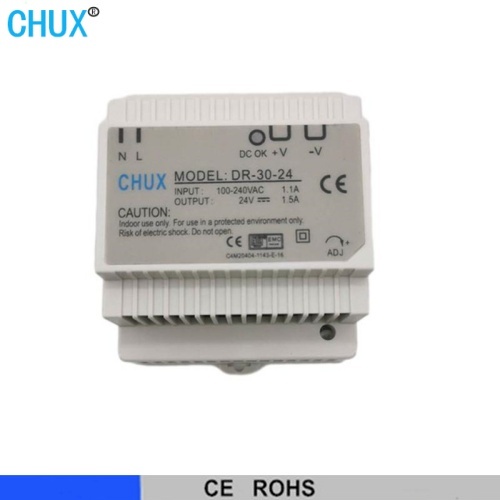

DIN RAIL TYPE 30W switching power supply
Features:·universal AC input
·Small volume,low weight,high efficiency
·Protections:short circuit/over load/over voltage
·cooling by free air convectio
·can be installed on DIN rail: TS-35/7.5or TS-35/15
·LED indicator for power on
·100% full load burn-in test
·2 Year warranty
| MODEL |
DR-30-5 |
DR-30-12 |
DR-30-15 |
DR-30-24 |
| OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
| RATED CURRENT |
3A |
2A |
2A |
1.5A |
| RATED POWER |
15W |
24W |
30W |
36W |
| RIPPLE&NOISE |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
| VOLTAGE ADJ.RANGE |
4.75-5.5V |
10.8-13.2V |
13.5-16.5V |
21.6-26.4V |
| VOLTAGE TOLERANCE |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
| LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| LOAD REGULATION |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
| SETUP,RISE TIME |
100ms,30ms/230VAC 100ms,30ms/115VAC at full load |
| HOLD UP TIME(TYP.) |
90ms/230VAC 12ms/115VAC at full load |
| INPUT |
VOLTAGE RANGE |
85-264VAC 120-370VDC |
| FREQUENCY RANGE |
47-63HZ |
| EFFICIENCY(Typ.) |
74% |
81% |
82% |
83% |
| AC CURRENT(Typ.) |
0.88A/115VAC 0.48A/230VAC |
| INRUSH CURRENT |
COLD START 15A/115VAC 30A/230VAC |
| PROTECTION |
OVERLOAD |
105-160% RATED OUTPUT POWER |
| Protection type:Hiccup mode,recovers automatically after fault condition |
| OVER VOLTAGE |
5.75V-6.75V |
13.8V-16.2V |
17.2V-20.25V |
27.6V-32.4V |
| Protection type:Hiccup mode,recovers automatically after fault condition |
| ENVIRONMENT |
WORKING TEMP |
-10~+60°C |
| WORKING HUMIDITY |
20-90%RH non-condesing |
| STORAGE TEMP,HUMIDITY |
-20~+85°C,10-95%RH |
| TEMP.COEFFICIENT |
±0.03%°C(0-50°C) |
| VIBRATION |
10-500HZ |
| SAFETY&EMC |
SAFETY STANDARD |
CE RoHS |
| WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute |
| ISOLATION RESISTANCE |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH |
| EMI CONDUCTION&RADIATION |
Design refer to GB4943,UL60950,EN60950 |
| EMC STANDARD |
Design refer to GB9254,EN55022 Class A |
| DIMENSION |
93*78*56mm |
| PACKING |
0.4kg,50pcs/17kg
|
