Products >> PROXIMITY SENSOR >> square inductive type

  • IMF6
IMF6

IMF6

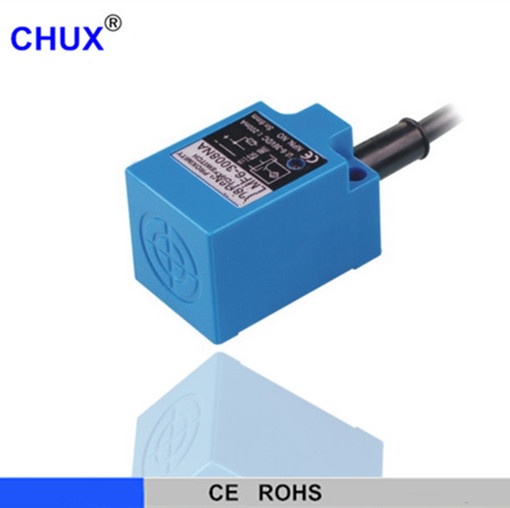

  INDUCTIVE SWITCH SQUARE TYPE PROXIMITY SENSOR IMF6



外形尺寸
OVERALL DIMENSIONS



     检测距离 DETECTION DISTANCE                             8mm




F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO

IMF6-8-DNA

NC

IMF6-8-DNB

NO+NC

IMF6-8-DNC

PNP

NO

IMF6-8-DPA

NC

IMF6-8-DPB

NO+NC

IMF6-8-DPC

二线制
two wire
system

NO

IMF6-8-DLA

NC

IMF6-8-DLB

SCR
可控硅
Control-
lable
silicon

NO

IMF6-8-ACA

NC

IMF6-8-ACB

NO+NC



继电器输出Relay output





     检测距离 DETECTION DISTANCE                           10mm





F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO

IMF6-10-DNA

NC

IMF6-10-DNB

NO+NC

IMF6-10-DNC

PNP

NO

IMF6-10-DPA

NC

IMF6-10-DPB

NO+NC

IMF6-10-DPC

二线制
two wire
system

NO

IMF6-10-DLA

NC

IMF6-10-DLB

SCR
可控硅
Control-
lable
silicon

NO

IMF6-10-ACA

NC

IMF6-10-ACB

NO+NC



继电器输出Relay output



输出电流
Controloutput

DC

200mA

SCR/继电器 Relay

300mA/1A

  输出电压降Output voltagc dropDC/AC

直流(NPN PNP)型3V以下、二线型:3.9V以下、交流AC 10V以下 DC<3V、AC<10V

  消耗电流Consumption current

直流(NPN PNP)型DC 12V时8mA、24V时15mA、交流AC 10mA以下DC<15mA、AC<10mA

  标准检测物体Standard detected object

30X30X1(A3铁iron)

  重复精度Repeated precision

0.05

  响应频率DC/AC

200Hz/25Hz

  工作环境温度Working environment temperature

-25℃~+75℃

  绝缘电阻Insulation resistance

50MΩ

  外壳材料Shell material

ABS树脂Resin

  防护等级Protection grade

IP67

  可替代国内型号Altemative model at home and abroad

TL-N5ME口口
