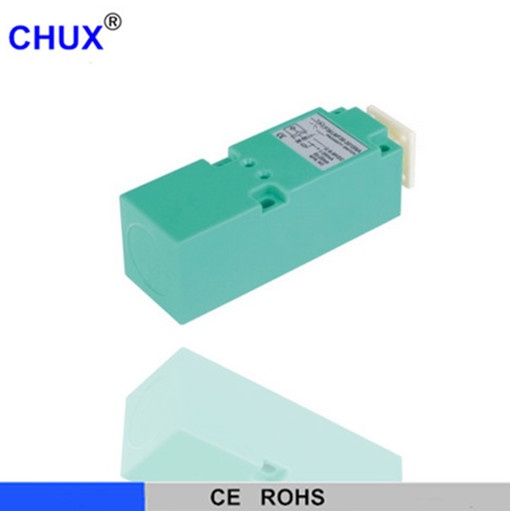

INDUCTIVE SWITCH SQUARE TYPE PROXIMITY SENSOR IMF36
外形尺寸 |
||||
检测距离 DETECTION DISTANCE |
||||
埋 |
直流
交流 |
NPN |
NO |
|
NC |
||||
NO+NC |
||||
PNP |
NO |
|||
NC |
||||
NO+NC |
||||
二线制 |
NO |
|||
NC |
||||
SCR |
NO |
|||
NC |
||||
NO+NC |
||||
继电器输出Relay output |
|
|||
检测距离 DETECTION DISTANCE 1-20mm |
||||
非 |
直流
交流 |
NPN |
NO |
IMF36-20-DNA |
NC |
IMF36-20-DNB |
|||
NO+NC |
IMF36-20-DNC |
|||
PNP |
NO |
IMF36-20-DPA |
||
NC |
IMF36-20-DPB |
|||
NO+NC |
IMF36-20-DPC |
|||
二线制 |
NO |
IMF36-20-DLA |
||
NC |
IMF36-20-DLB |
|||
SCR |
NO |
IMF36-20-ACA |
||
NC |
IMF36-20-ACB |
|||
NO+NC |
|
|||
继电器输出Relay output |
|
|||
输出电流 |
DC |
200mA |
||
SCR/继电器 Relay |
300mA/2A |
|||
输出电压降Output voltagc dropDC/AC |
直流(NPN PNP)型3V以下、二线型:3.9V以下、交流AC 10V以下 DC<3V、AC<10V |
|||
消耗电流Consumption current |
直流(NPN PNP)型DC 12V时8mA、24V时15mA、交流AC 10mA以下DC<15mA、AC<10mA |
|||
标准检测物体Standard detected object |
50X50X1(A3铁iron) |
|||
重复精度Repeated precision |
0.2 |
|||
响应频率DC/AC |
200Hz/15Hz |
|||
工作环境温度Working environment temperature |
-25℃~+70℃ |
|||
绝缘电阻Insulation resistance |
50MΩ |
|||
外壳材料Shell material |
ABS树脂Resin |
|||
防护等级Protection grade |
IP67 |
|||
可替代国内型号Altemative model at home and abroad |
|
