Products >> PROXIMITY SENSOR >> square inductive type

  • IMF16
IMF16

IMF16

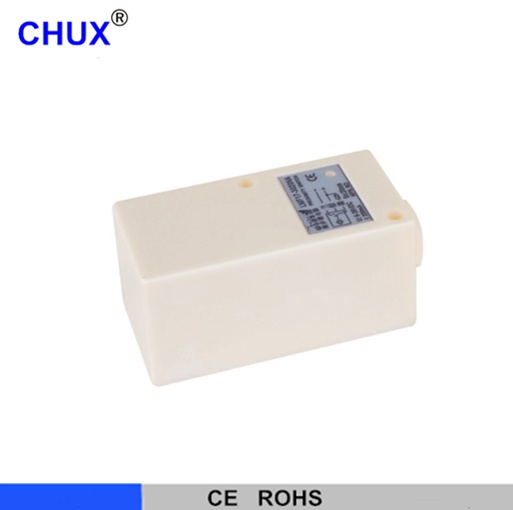

   inductive square type proximity sensor switch NPN PNP IMF16

外形尺寸
OVERALL DIMENSIONS



     检测距离 DETECTION DISTANCE




F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO



NC



NO+NC



PNP

NO



NC



NO+NC



二线制
two wire
system

NO



NC



SCR
可控硅
Control-
lable
silicon

NO



NC



NO+NC


继电器输出Relay output





     检测距离 DETECTION DISTANCE                           15mm





F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO

IMF16-15-DNA

NC

IMF16-15-DNB

NO+NC

IMF16-15-DNC

PNP

NO

IMF16-15-DPA

NC

IMF16-15-DPB

NO+NC

IMF16-15-DPC

二线制
two wire
system

NO

IMF16-15-DLA

NC

IMF16-15-DLB

SCR
可控硅
Control-
lable
silicon

NO

IMF16-15-ACA

NC

IMF16-15-ACB

NO+NC

IMF16-15-C

继电器输出Relay output

IMF16-15-JC

输出电流
Controloutput

DC

200mA

SCR/继电器 Relay

300mA

  输出电压降Output voltagc dropDC/AC

直流(NPN PNP)型3V以下、二线型:3.9V以下、交流AC 10V以下 DC<3V、AC<10V

  消耗电流Consumption current

直流(NPN PNP)型DC 12V时8mA、24V时15mA、交流AC 10mA以下DC<15mA、AC<10mA

  标准检测物体Standard detected object

45X45X1(A3铁iron)

  重复精度Repeated precision

0.05

  响应频率DC/AC

100Hz/Hz

  工作环境温度Working environment temperature



  绝缘电阻Insulation resistance



  外壳材料Shell material



  防护等级Protection grade



  可替代国内型号Altemative model at home and abroad

LJ2-口口/口口口
