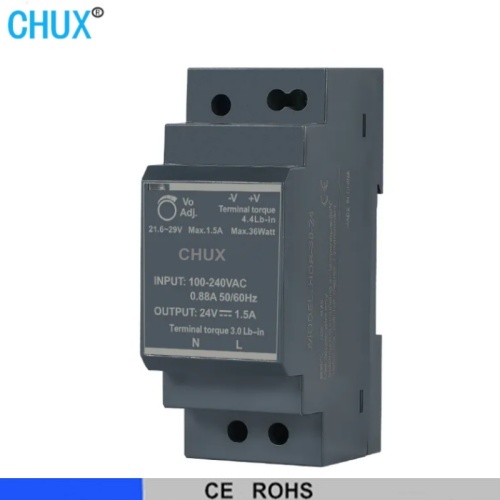

Hdr-30 12v 24V Single Output SMPS 30W 110V 220V AC to DC  DIN Rail Power Supply

Model	HDR-30-5	HDR-30-12	HDR-30-15	HDR-30-24
DC Voltage	5V	12V	15V	24V
Rated Current	3A	2A	2A	1.5A
Current Range	0-3A	0-2.5A	0-2A	0-1.5A
Rated Power	15W	24W	30W	36W
Ripple & Noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p
Voltage Adj. Range	4.75-5.5V	10.8-13.2V	13.5-16.5V	21.6-26.4V
Voltage Tolerance	±2%	±1%	±1%	±1%
Line regulation	±1%	±1%	±1%	±1%
Load regulation	±1%	±1%	±1%	±1%
Setup, Rise, Hold Up Time	100ms,30ms/230VAC 100ms,30ms/115VAC at full load 100ms/230VAC 21ms/115VAC at full load
Voltage Range	85~264VAC 47~63Hz; 120~370VDC
AC Current	0.88A/115V 0.48A/230V
Efficiency	74%	81%	82%	83%
Inrush Current	Cold start 15A/115V 30A/230V
Over Load	105%~160% rated output power
	Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage	5.75-6.75V	13.8-16.2V	17.25-20.25V	27.6-32.4V
	Protection type: Shut down o/p voltage, re-power on to recover
Working Temp., Humidity	-20ºC~+60ºC; 20%~90% RH non-condensing
Storage Temp., Humidity	-40ºC~+85ºC; 10%~95%RH
Temp. Coefficient	±0.03%/ºC(0~50ºC)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Withstand Voltage	I/P-O/P: 3KVAC
Isolation Resistance	I/P-O/P: 100M Ohms / 500VDC/25ºC/70% RH
