HDR 100W

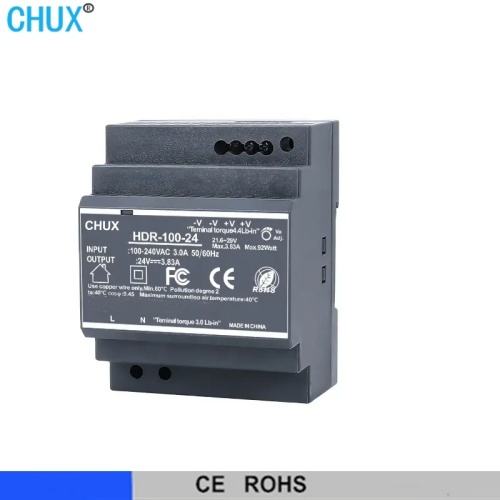

Hdr-100 DIN Rail Single Output Power Supply 100W 12V 24V DC for Industrial Control System

Specification

MODEL		HDR-100-12	HDR-100-15	HDR-100-24	HDR-100-48
OUTPUT	DC Voltage	12v	15V	24v	48v
	Rated Current	7.5A	6.5A	4.2A	2.1A
	Current range	0~7.5A	0~6.5A	0~4.2A	0~2.1A
	Rated power	90w	97.5w	100.8w	100.8W
	Ripple&noise(max.)	120mVp-p	120mVp-p	150mVp-p	240mVp-p
	Voltage ADJ. range	12~13.8V	13.5~18V	21.6~29V	43.2~55.2V
	Voltage tolerance	±2.0%	±1.0%	±1.0%	±1.0%
	Line regulation	±1.0%	±1.0%	±1.0%	±1.0%
	Load regulation	±1.0%	±1.0%	±1.0%	±1.0%
	Setup,Rise,Time	500ms, 60ms/230VAC 500ms, 60ms/115VAC(full load)
	Hold up time	30ms/230VAC 12ms/115VAC(full load)
INPUT	Voltage range	85~264VAC(277VACusable ) 120~370VDC(390VDCusable )
	Voltage range	50~60Hz
	Efficiency	88%	89%	90%	90%
	AC current	3A/115VAC 1.6A/230VAC
	Inrush current	Cold start: 35A/115VAC 70A/230VAC
PROTECTION	Over load	105~150% rated output power
		Protected mode: constant current mode, can be automatically restored after the load abnormal condition is removed
	Over voltage	14.2~16.2V	18.8~22.5V	30~36V	56.5~64.8V
		Protective mode; Close the output and restart to restore
Environment	Working TEMP	-30~+70ºC
	Working humidity	20~90% RH,non-condensing
	Storage TEMP humidity	-40~+85ºC,10-95%RH,non-condensing
	TEMP.coefficient	±0.03%ºC(0~50ºC)
	Vibration	10~500Hz,2G 10min./1cycle,60min.each along X,Y,Z axes Install conform to IEC60068-2-6
	Operating altitude	2000m
	Over voltage class	;According to EN61558 EN50178 EN60664-1, EN62477-1;The altitude can be as high as 2,000 meters
