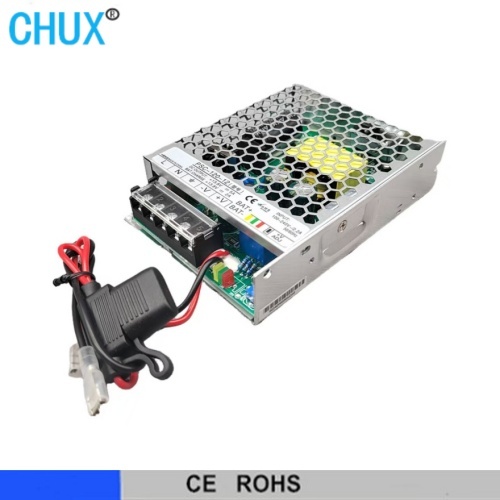

Model

PSC-120-12

PSC-120-24

output

DC voltage

CH1:13.8V

CH1:13.8V

CH1:27.6V

CH2:7.6V

Voltage tolerance

±1%

-----

±1%

-----

Rated current

5A

2A

2.5A

1A

Current range

0~5

--

0~2.5A

-----

Ripple&noise

100mvp-p

-----

100mvp-p

-----

DCvoltage ADJ.range

CH1:11.3~14.9V

CH1:21.3~29.8V

input

Voltage range

90~264VAC,127~370VDC

frequency

47~63HZ

AC current

1.6A/115VAC,0.8A/230VAC

efficiency

81%

83%

Inrush current

Cold start current  25A/115VAC,45A/230VAC

Leakage current

< 1mA/240VAC

protection

Over load

Rated output power110%~150%  start over load protection

protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed

Battery protection

At low voltage

9.5~11V

20~22V

protection mode:cutoff output

Function

UPS introduction

long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard,

cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs

environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fitstandard

Safety standard

Compliance to UL60950-1

EMC standard

Compliance to EN55022,CLASSB

others

Dimension

129*98*38mm (L*W*H)

Weight/packing

0.45kg/45pcs/24kg/0.034m⊃3;/1.2CU
