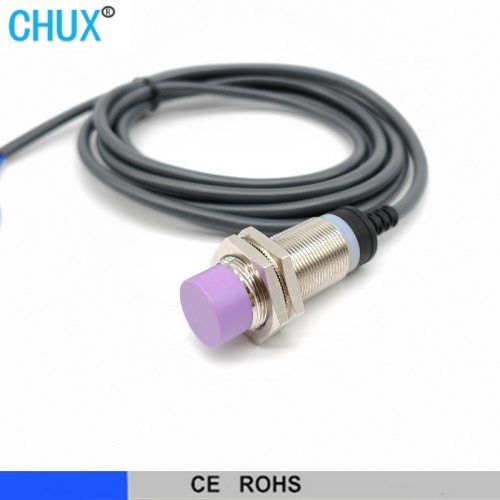

M18  Cylinder Inductive Proximity Sensor Position Switch



Flush	Detection distance			5mm
	DC10~30V	NPN	NO	IMN18-5-DNA
			NC	IMN18-5-DNB
			NO+NC
		PNP	NO	IMN18-5-DPA
			NC	IMN18-5-DPB
			NO+NC
		two wire system	NO
			NC
	AC90~250V	SCR Control- lable silicon	NO
			NC
			NO+NC
		Relay output
Non- Flush	Detection distance			8mm
	DC10~30V	NPN	NO	IMN18-8-DNA
			NC	IMN18 -8-DNB
			NO+NC
		PNP	NO	IMN18 -8-DPA
			NC	IMN18 -8-DPB
			NO+NC
		two wire system	NO
			NC
	AC90~250V	SCR Control- lable silicon	NO
			NC
			NO+NC
		Relay output
Output current		DC		200mA
		SCR/ Relay		300mA
Consumption current				DC< 15mA, AC< 10mA
DC/AC Response frequency				1000Hz
Working environment temperature				-25° C~+70° C
Shell material				Metal
Protection grade				IP67
