IM12-C

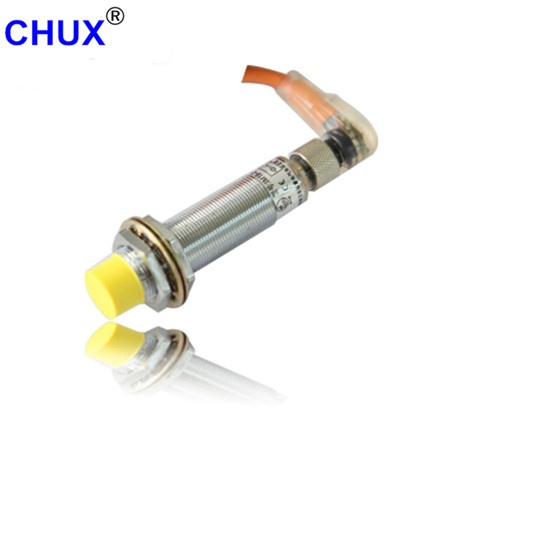

SENSOR WITH BEND CONNECTOR TYPE IM12-C

Note: NPN head color is yellow, PNP is Grenn and AC is red color

Outward appearance code				IM12-口口-C
Flush	Detection distance			2mm
	DC 6-36 VDC	NPN	NO	IM12-2-DNA-C
			NC	IM12-2-DNB-C
			NO+NC	IM12-2-DNC-C
		PNP	NO	IM12-2-DPA-C
			NC	IM12-2-DPB-C
			NO+NC	IM12-2-DPC-C
		Two wire systerm	NO	IM12-2-DLA-C
			NC	IM12-2-DLB-C
	AC 90~250 VAC	SCR control-lable silicon	NO	IM12-2-ACA-C
			NC	IM12-2-ACB-C
			NO+NC
		Relay output
Non- flush	Detection distance			4mm
	DC 6-36 VDC	NPN	NO	IM12-4-DNA-C
			NC	IM12-4-DNB-C
			NO+NC	IM12-4-DNC-C
		PNP	NO	IM12-4-DPA-C
			NC	IM12-4-DPB-C
			NO+NC	IM12-4-DPC-C
		Two wire system	NO	IM12-4-DLA-C
			NC	IM12-4-DLB-C
	AC 90~250 VAC	SCR Control-lable silicon	NO	IM12--4-ACA-C
			NC	IM12-4-ACB-C
			NO+NC
		Relay output
Output current		DC		200mA
		SCR/ Relay		200mA
Output voltage drop DC/AC				DC＜3V, AC＜10V, DC two wire＜3.9V
Consumption current				DC12V＜8mA, DC24V＜8mA, AC＜10mA
Standard detected object				12121 A3 Iron
Repeated precision				0.01
DC/AC Response frequency				400Hz/10Hz
Working environment temperature				-25°C~+70°C
Insulation resistance				50MΩ
Shell material				Metal
Protection grade				IP67
Altemative model at home and abroad				E2E-X2E1-M1
