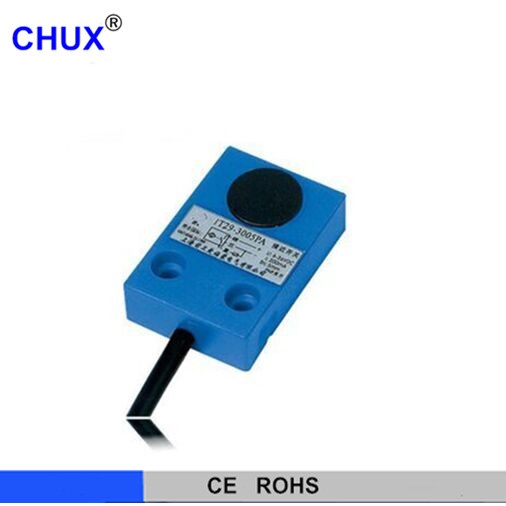

INDUCTIVE SWITCH SQUARE TYPE PROXIMITY SENSOR IMF29

外形尺寸
OVERALL DIMENSIONS



     检测距离 DETECTION DISTANCE                             5mm




F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO

IMF29-5-DNA

NC

IMF29-5-DNB

NO+NC

IMF29-5-DNC

PNP

NO

IMF29-5-DPA

NC

IMF29-5-DPB

NO+NC

IMF29-5-DPC

二线制
two wire
system

NO

IMF29-5-DLA

NC



SCR
可控硅
Control-
lable
silicon

NO

IMF29-5-ACA

NC

IMF29-5-ACB

NO+NC



继电器输出Relay output





     检测距离 DETECTION DISTANCE                           8mm





F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO

IMF29-8-DNA

NC

IMF29-8-DNB

NO+NC

IMF29-8-DNC

PNP

NO

IMF29-8-DPA

NC

IMF29-8-DPB

NO+NC

IMF29-8-DPC

二线制
two wire
system

NO

IMF29-8-DLA

NC

IMF29-8-DLB

SCR
可控硅
Control-
lable
silicon

NO

IMF29-8-ACA

NC

IMF29-8-ACB

NO+NC



继电器输出Relay output



输出电流
Controloutput

DC

200mA

SCR/继电器 Relay

300mA

  输出电压降Output voltagc dropDC/AC

直流(NPN PNP)型3V以下、二线型:3.9V以下、交流AC 10V以下 DC<3V、AC<10V

  消耗电流Consumption current

直流(NPN PNP)型DC 12V时8mA、24V时15mA、交流AC 10mA以下DC<15mA、AC<10mA

  标准检测物体Standard detected object

25X25X1(A3铁iron)

  重复精度Repeated precision

0.05

  响应频率DC/AC

300Hz

  工作环境温度Working environment temperature

-25℃~+70℃

  绝缘电阻Insulation resistance

50MΩ

  外壳材料Shell material

ABS树脂Resin

  防护等级Protection grade

IP67

  可替代国内型号Altemative model at home and abroad
