Products >> PROXIMITY SENSOR >> square inductive type

  • IMF370
IMF370

IMF370

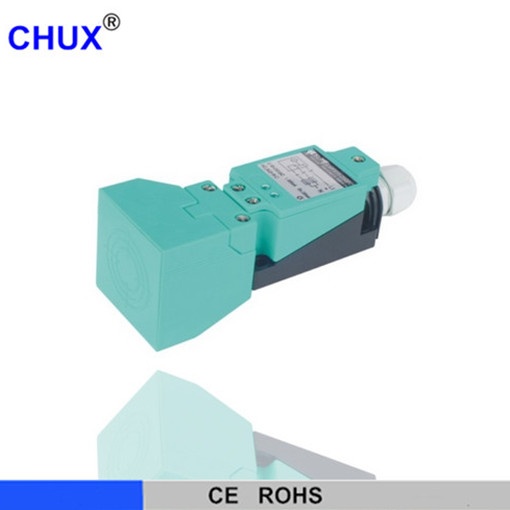

INDUCTIVE SWITCH SQUARE TYPE PROXIMITY SENSOR IMF370

外形尺寸
OVERALL DIMENSIONS



     检测距离 DETECTION DISTANCE




F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO



NC



NO+NC



PNP

NO



NC



NO+NC



二线制
two wire
system

NO



NC



SCR
可控硅
Control-
lable
silicon

NO



NC



NO+NC


继电器输出Relay output





     检测距离 DETECTION DISTANCE                           20mm





F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO

IMF370-40-DNA

NC

IMF370-40-DNB

NO+NC

IMF370-40-DNC

PNP

NO

IMF370-40-DPA

NC

IMF370-40-DPB

NO+NC

IMF370-40-DPC

二线制
two wire
system

NO

IMF370-40-DLA

NC

IMF370-40-DLB

SCR
可控硅
Control-
lable
silicon

NO

IMF370-40-ACA

NC

IMF370-40-ACB

NO+NC



继电器输出Relay output



输出电流
Controloutput

DC

200mA

SCR/继电器 Relay

500mA

  输出电压降Output voltagc dropDC/AC

直流(NPN PNP)型3V以下、二线型:3.9V以下、交流AC 10V以下 DC<3V、AC<10V

  消耗电流Consumption current

直流(NPN PNP)型DC 12V时8mA、24V时15mA、交流AC 10mA以下DC<15mA、AC<10mA

  标准检测物体Standard detected object

55X55X1(A3铁iron)

  重复精度Repeated precision

0.5

  响应频率DC/AC

200Hz/10Hz

  工作环境温度Working environment temperature

-25℃~+70℃

  绝缘电阻Insulation resistance

50MΩ

  外壳材料Shell material

塑料 Plastil

  防护等级Protection grade

IP67

  可替代国内型号Altemative model at home and abroad
